Instruments to measure the dimensions of the springs, wire and strip formed parts.
LED2D-65 / LED2D-100
Automatic camera profile projector for test bench
- Motorized focus
- Full statistic / process control with the software PMAR8
- “Caliper” function for quick check
- Acquisition of the measures in less than a second
- Use “virtual tracing paper” on monitor
- Functionality with “virtual camera” to control the different angles of view of the part
LED2D-140
Camera profile projector with ample field of vision and moving table
- Field of vision: approx. 140 x 100 mm
- For springs and small parts in metal
- Automatic and immediate dimensional measurements
- Automatic execution of tests, management of archive and print-out of data

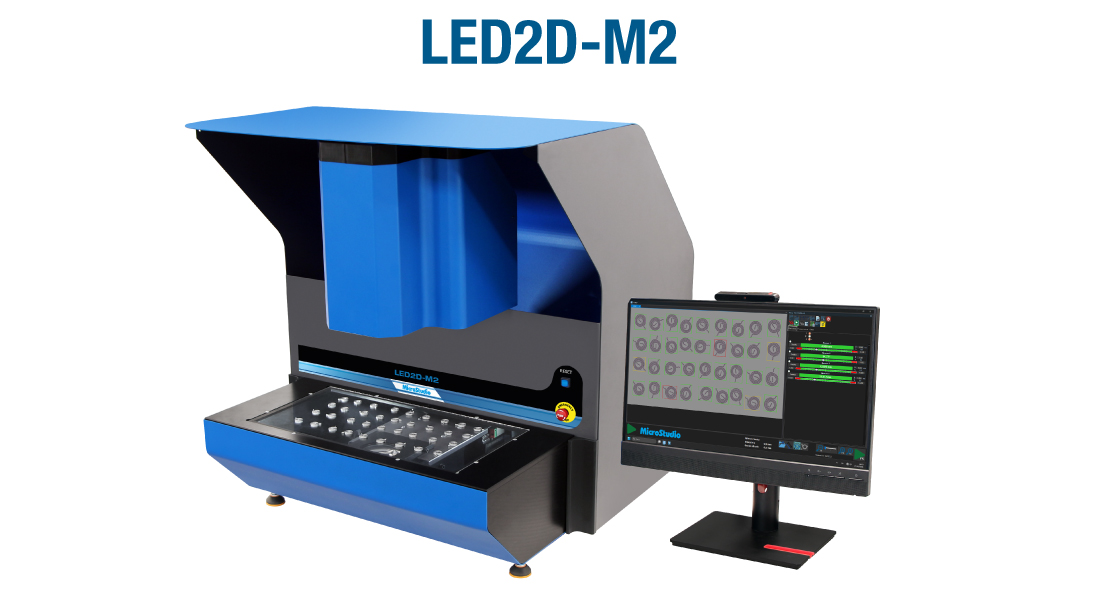

LED2D-M2
Automatic camera profile projector for test bench
- Field of vision: approx. 500 x 250 mm
- Automatic and immediate dimensional measurements
- Multi-part measurements
- Use “virtual tracing paper” on monitor
- Full statistic / process control with the software PMAR8
LED3D-16H / LED3D-50H / LED3D-100H / LED3D-120H
3D measuring instruments for small to medium-sized compression springs
- For springs up to 120 mm
- Analysis of geometric characteristics of compression springs
- Immediate measurement of perpendicularity, parallelism and pitch
- For cylindrical, conical, ground and non-ground, round and rectangular wire springs
- Automatic execution of tests, management of archive and print-out of data
LED3D-300 / LED3D-700
3D measuring instruments for large compression springs
- For long springs up to 700 mm
- Instrument supplied with base
- Similar analysis capacity to LED3D-xxxH
IVM
3D measuring system for torsion springs and bent wire parts of any shape
- Three-dimensional measurements of any parts made with round section wire: torsion springs, double torsion, and any other form
- No accurate alignment of the piece required
- Creation of unlimited 2D layouts
- Measurements of distances, diameter, lengths, angles, concentricity, number of coils, etc.
CAL280
Caliper for springs with electrical contact
- For long springs up to 280 mm
- For cylindrical and conical, ground and non-ground springs
- Touchscreen display with basic statistics and counter
- Use with power supply unit or battery
CAL2D-16 / CAL2D-50 / CAL2D-100 / CAL2D-300
Calipers for springs with camera
- For small and medium, cylindrical and conical, ground and non-ground springs
- 4 models for springs of open length up to 300 mm
- Export of measurements and print-out of images
CAL-CF01
Caliper for internal rounding measurement
- Measurements acquired through camera
- For small and medium, cylindrical and conical springs
- For long springs up to 90 mm
- Touchscreen display and export of measurements
