Automatic machine to set springs, check the load and sort.

MC54-30 / MC54-150 / MC54-1000
For medium-small ground compression springs

  • Turntable with bushing-guided springs
  • Setting and measurement of length and loads
  • 5-way motorised separator
  • Completely parametrised
  • Various models based on spring dimensions:
    • MC54-30: ø external max. 12 mm
    • MC54-150: ø external max. 28 mm
    • MC54-1000: ø external max. 64 mm
  • Setup for connection to our feeders FCF2 or FCF3
  • Various accessories to customise control
  • Industry 4.0
Technical Informations2023-07-26T13:58:57+02:00
CATALOGUE
Video2021-07-28T13:54:17+02:00

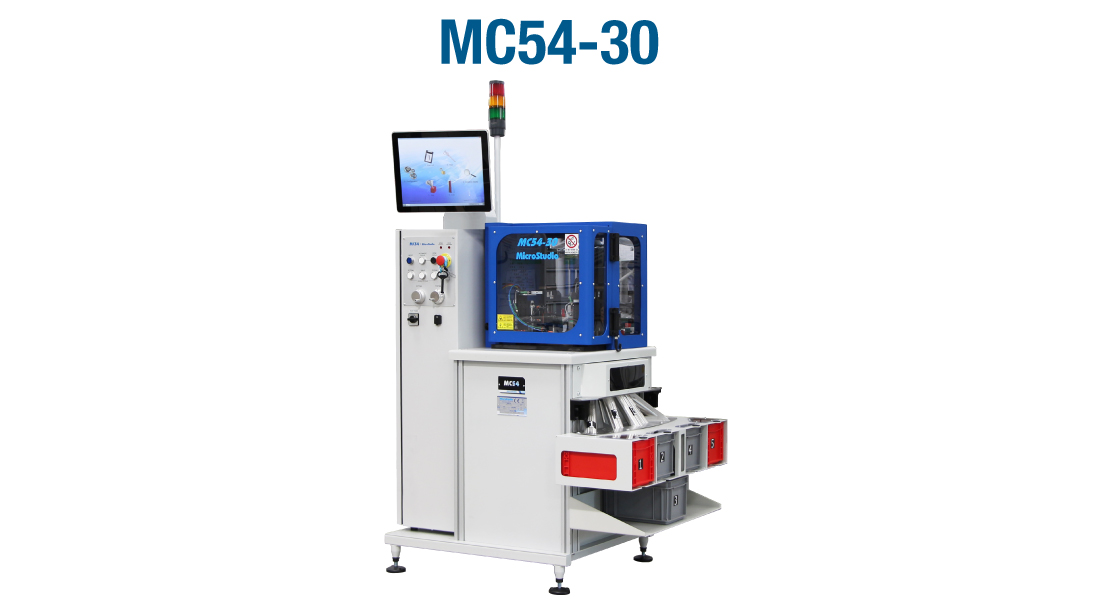

MC54-30

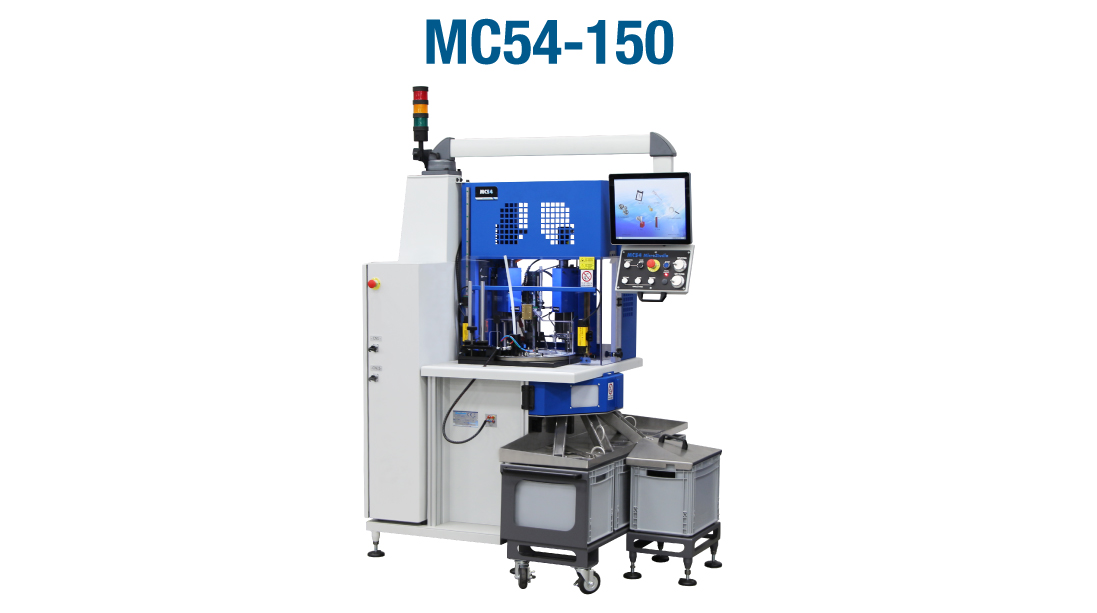

MC54-150
MC54-1000

MC54-2000 / MC54-4000 / MC54-8000
For large ground compression springs

  • Turntable with bushing-guided springs
  • 3-2 way separator
  • Various models based on spring dimensions:
    • MC54-2000: ø external max. 64 mm
    • MC54-4000: ø external max. 64 mm
    • MC54-8000: ø external max. 120 mm
  • Setup for connection to loading system
Technical Informations2023-07-26T13:56:52+02:00
CATALOGUE

MCP30
For small, ground and stable compression springs

  • Turntable with springs held by retractable clamps.
  • For springs ø external max 12 mm.
  • Setting and measurement of length and loads without friction.
  • Millesimal optical scale
  • 5-way motorised separator
  • Completely parametrised
  • Industry 4.0
Information Techniques2023-05-22T14:06:49+02:00
CATALOGUE
Video2021-07-28T11:57:52+02:00
MCP30

RDZ100
High speed setting machine for small and very small compression springs

  • Rotating table with springs guided on pin
  • Maximum setting load 1 kN
  • Angular orientation of not ground springs
  • Spring evacuation by air-blow
Technical Informations2023-09-12T11:54:32+02:00
CATALOGUE

RDZ500
High speed setting machine for medium-size compression springs

Technical Informations2023-09-12T11:54:32+02:00
CATALOGUE
Video2023-09-11T21:46:10+02:00
RDZ500

RDZ900
High speed setting machine for big-size compression springs

Technical Informations2023-09-12T11:54:32+02:00
CATALOGUE
Video2023-09-11T21:52:34+02:00
RDZ900

SCR
Dimensional control with camera at high speed for small springs and small parts

  • Indicated for final control, sorts polluted or mixed batches.
  • Dimensional measurement of compression springs and particular flat profiles (staples and rings).
  • High speed control of rotating glass plate
  • 2 or 3-way separation system
  • Setup for connection to circular vibrator
  • PC with touchscreen monitor and possibility of endless dimensional measurements
Technical Informations2023-09-15T11:18:16+02:00
CATALOGUE

MCV
Compression springs geometric control

  • Indicated for analysis of perpendicularity and closures and deformations of the spring
  • Spring rotation on clamp
  • 2-way separation system
